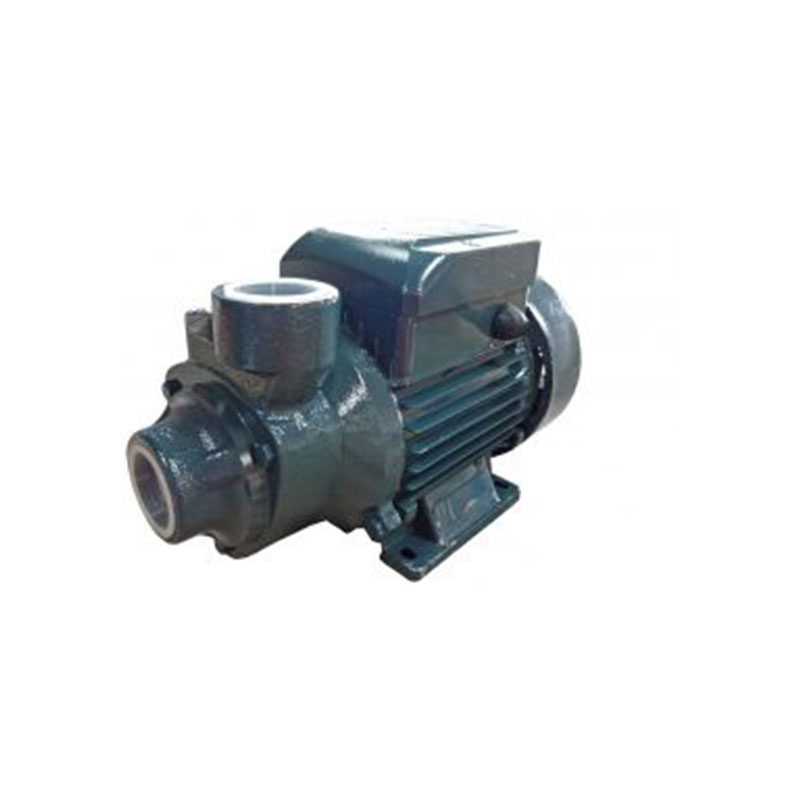

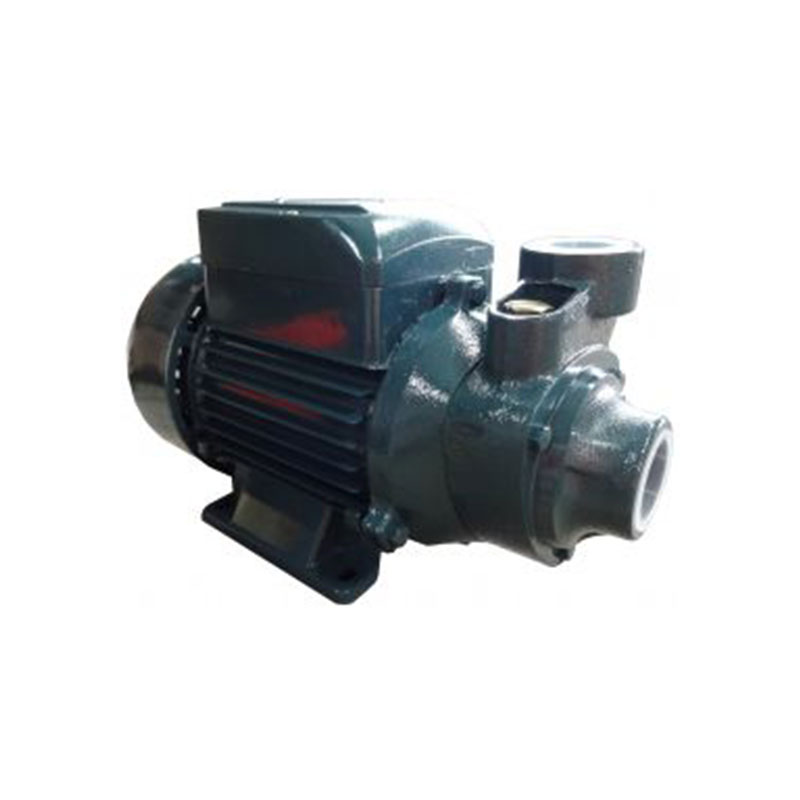

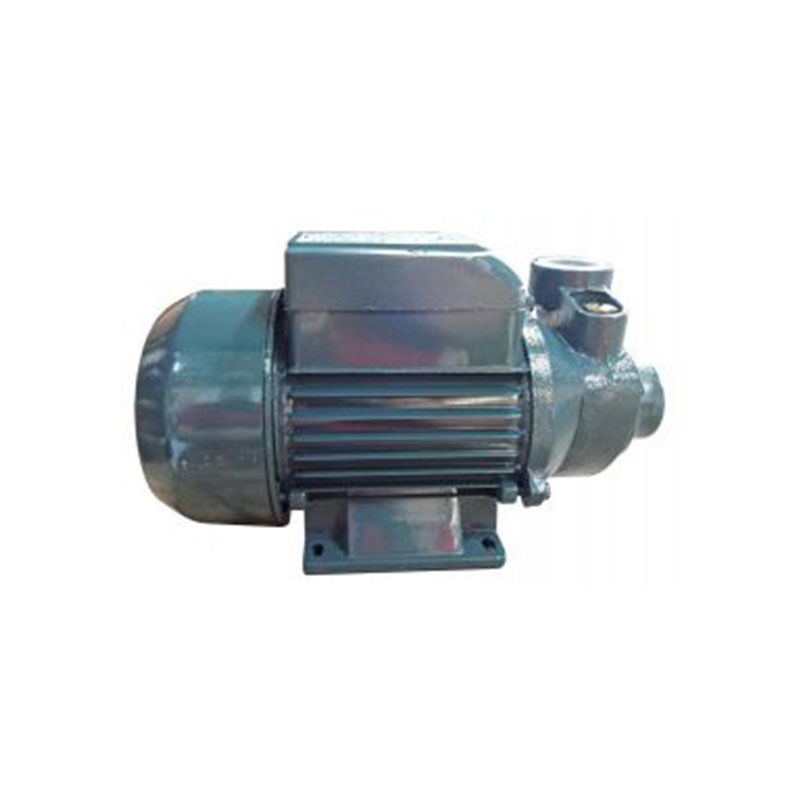

Petrolla Clean Water Pump PKM-60 is a series of centrifugal electric pump that have been designed to pump neutral clean liquids in which no abrasive solids are suspended at temperatures of no more than 80°C. The pump must be installed in a dry well ventilated place with an ambient temperature of no more than 40°C. Petrolla Clean Water Pump PKM-60 is mainly used in water supply applications for pumping clean or treated water, e.g. drinking water, surface water (rivers, streams, ponds, sea) or groundwater (wells, springs).
Stock Code:881204006
Brochure:
PKM 60 Catalog.pdf
| Brand : | Petrolla |
| Type : | Horizontal Clean Water Pump |
| Model : | PKM-60 |
| Power (kW) : | 0.37 |
| Power max (W) : | 500 |
| Horse Power (hp) : | 0.50 |
| Head (m) : | 40 – 5 |
| Head max (m) : | 42 |
| Flowrate (L/min) : | 5 – 40 |
| Flowrate max (L/min) : | 40 |
| Voltage (V) : | 230 |
| Frequency (Hz) : | 50 |
| Current (A) : | 2.5 |
| Speed (rpm) : | 2900 |
| Capacitor (µF) : | 10 |
| Insulation Class : | B |
| IP No : | 44 |
| Dimension (cm) : | 25(L) x 14(H) x 13(W) |
| Weight (kg) : | 4.1 |
| Suction Lift up to 8m. |
| Continuous duty. |
| Fluid temperature up to 60°C |
| Maximum ambient temperature 40°C. |
| Optional c/w Tideway Press Control PC-10 (Stock Code: 880214008) attachment is not included but can be order separately. |
| Single phase motor is thermally protected against overload. |
| No abrasive solids only neutral clean liquids. |
| Installed in a horizontal position to ensure the bearings operate correctly. |
| Fill the pump completely with clean water before switching it on. |
| Never run the pump empty. |
| Never carry out any work on the pump without having first disconnected it from the mains supply. |
| Installed in a dry ventilated place with ambient temperature. |
