Specification
| Rated Load: | 1000 Kg |
| Speed: | 34 m/min |
| Lift: | 110 m |
| Power: | 10 HP |
| Voltage: | 415V / 50Hz (3 PH) |
| Diameter Of The Cable Wire: | 9.3 mm |
| Net Weight: | 460 Kg |

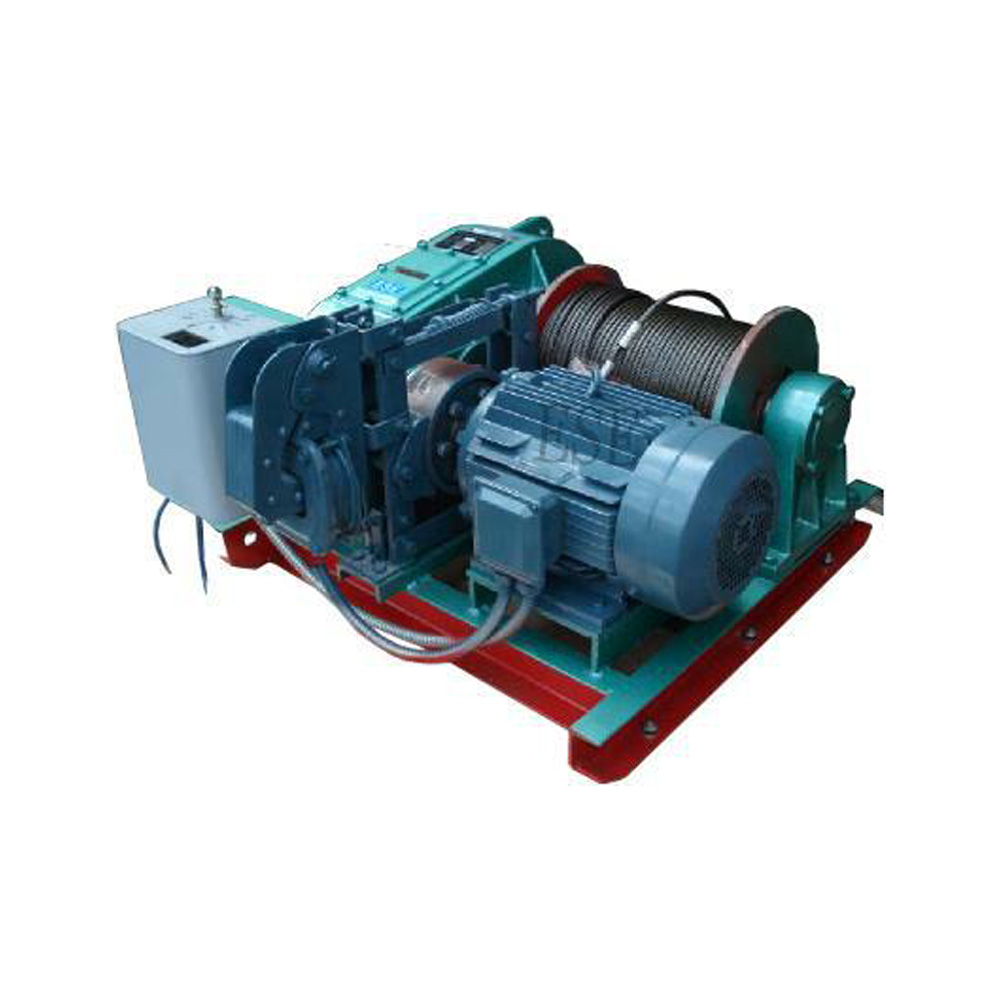

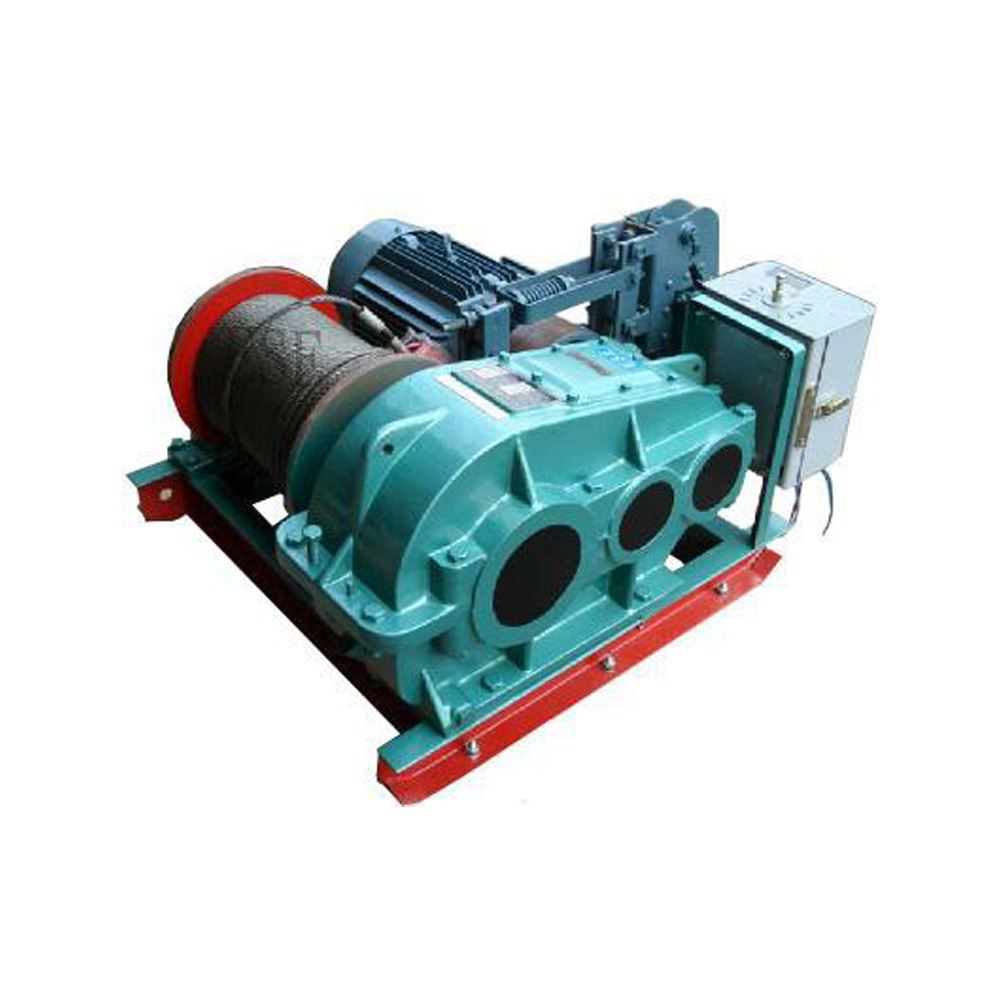

WINCH ESE HW-1000110
Winch ESE HW-1000110 is a heavy-duty lifting and pull heavy loads applications with rated power 10 hp motor and high speed control ability. Winch electric cable is also used in medium and large-sized concrete batching plant to lift steel structure and mechanical equipment. Suitable used widely on architecture, port, forestry, construction sites, mining and etc. Winch HW-1000110 provide equipment in a 34 m/min speed, pulling tension and rated capacity is 1000 kg.
Stock Code:
881017005
Brochure:
WINCH ESE HW-1000110
Features
| High reliability |
| Stable performance and simple operation |
| Easy maintenance and top quality |
| Large loading capacity and high versatility |
| High safety standard at work |
| Electric drum winch participates in cargoes lifting, unloading, pushing, dragging and slinging works. |
| Electric motor installed on a body frame |
| Motor, coupler, gear box reel, electromagnetic brake, electromagnetic controller and chassis |
| Made in Taiwan |
