Specification
| Model: | TDFE560 |
| Type: | Fan Industry Box Type Blower |
| Power Source: | Electric |
| Size: | 22” |
| Speed: | 1900 rpm |
| Motor: | 11kW |
| Voltage: | 415V |
| Frequency: | 50Hz |
| Phase: | 3PH |
| Net Weight: | 300 Kg |
| Gross Weight: | 321 Kg |
| Dimension: | (L) 1010 x (W) 740 x (H) 1750 mm |

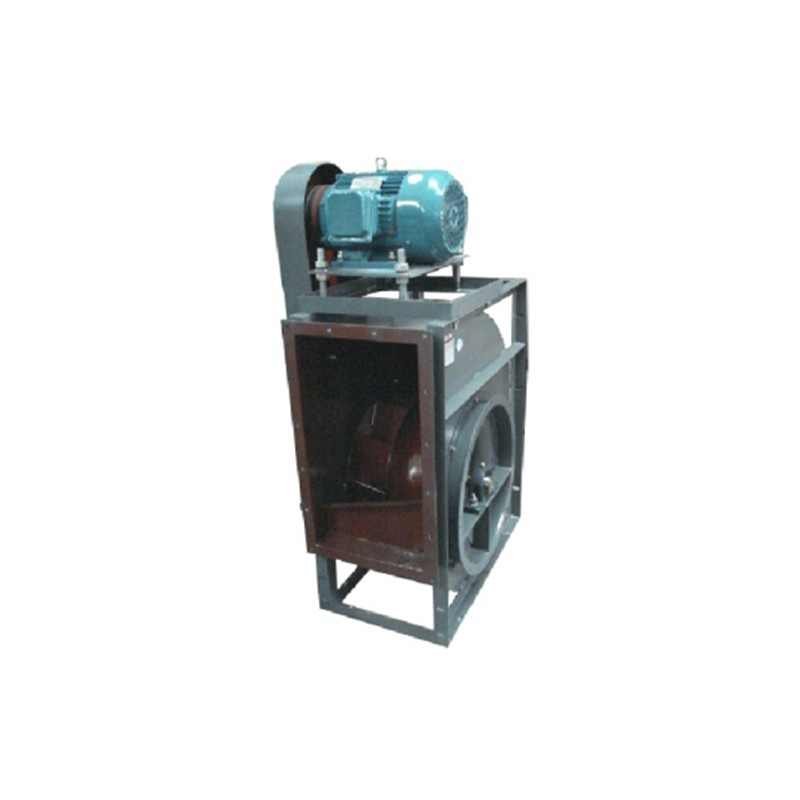

Vitoli Industry Blower TDFE560
Vitoli Industry Blower TDFE560 is a single inlet backward curve centrifugal fan with motors out of the airstream and non-overloading characteristic. Vitoli Industry Blower TDFE560 is capable of handling light dust in the airstream, high efficient, low noise operation and fresh air environment. Vitoli Industry Blower TDFE560 motor is a standard industrial type, normally IP55 protection class. Vitoli Industry Blower TDFE560 is suitable use in a wide variety of ventilation applications for transporting clean air without flammability explosion and corrosion.
Stock Code: 881102024
Brochure:
»» Click Here
Features
| Single inlet |
| Backward curved |
| Belt-driving |
| Dust filtration units |
| General air extraction system |
| High efficiency and high pressure |
| Frame is suitable for 3 angle |
| Industry blower |
| Scroll housing is made of galvanized steel sheet |
| Maintain a smooth consistent appearance without sacrificing strength and rigidity |
| Coated in polyester in order to provide corrosion resistance |
| Low power consumption |
