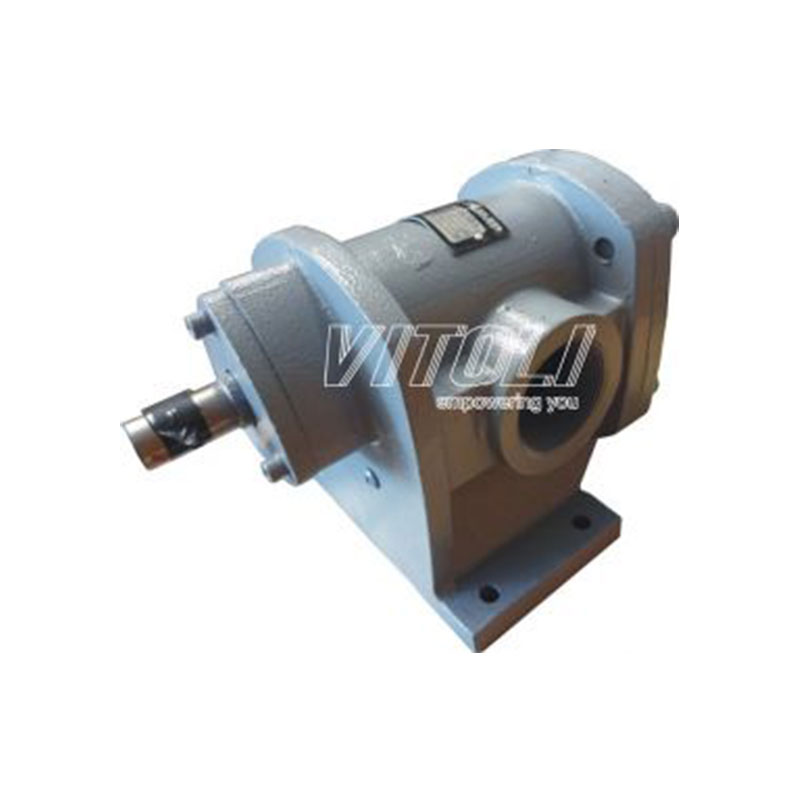

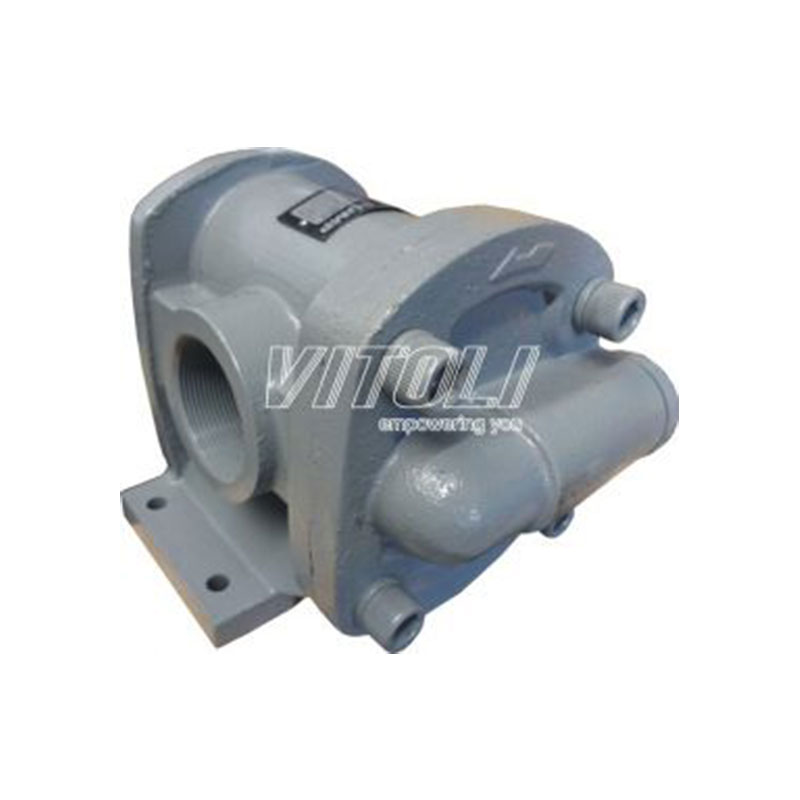

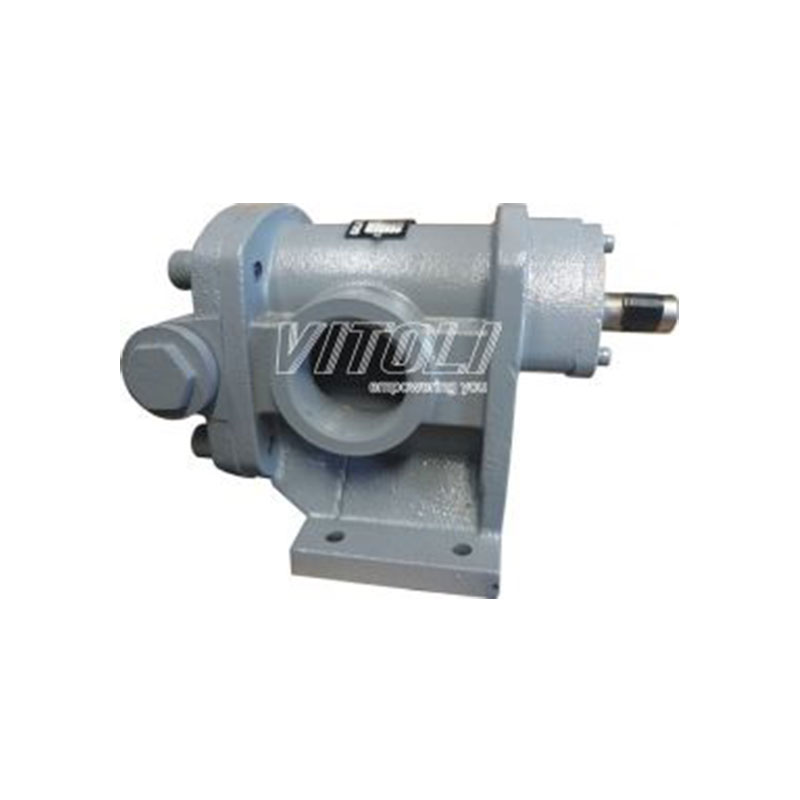

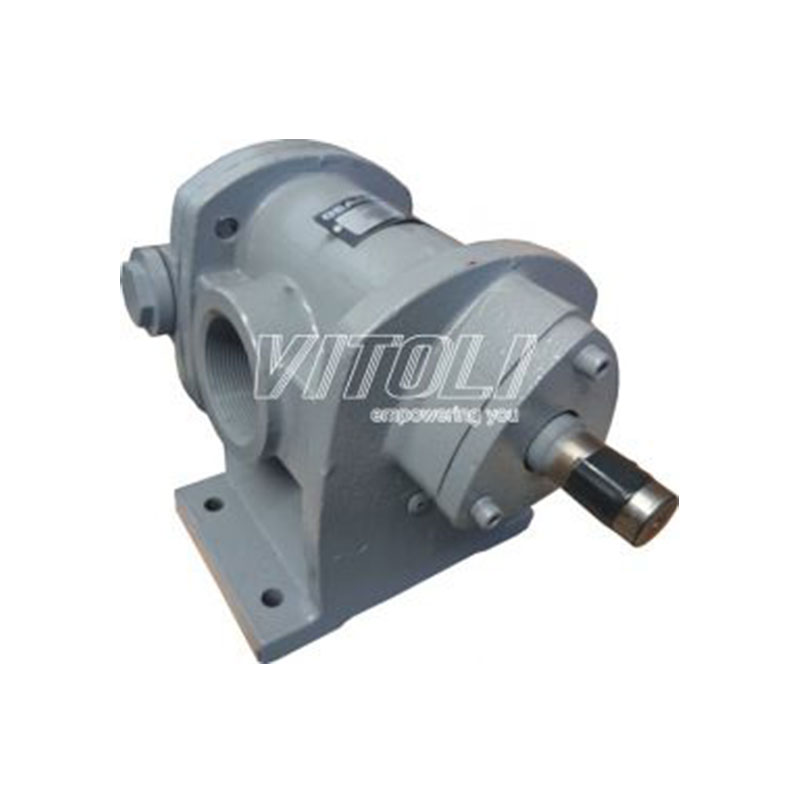

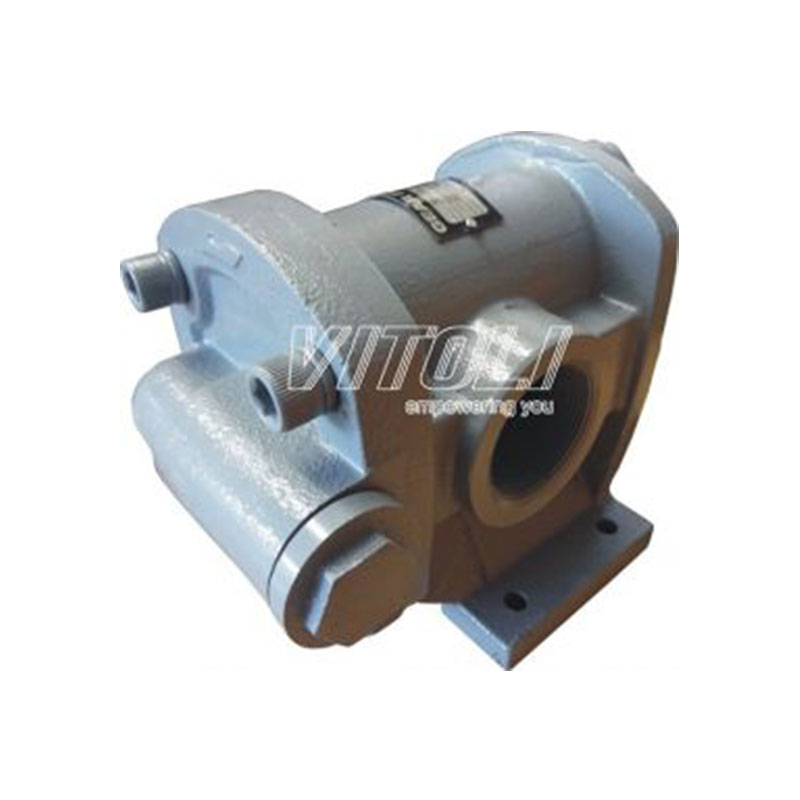

Vitoli Gear Pump GL50 is a high quality gear pump well suited for high viscous fluid such as oil as it does not require priming, do not mix or emulsify the fluid, is efficient and have high pressure head with tolerance to small particles. This pump has positive displacement pumps used for excellent capacity (litre/minute) control and are self-priming to 4 meters once wet. Vitoli Gear Pump GL50 are perfect for pumping low viscosity oils such as kerosene, machine oil, heavy oil and light oil. It can be coupled to electric geared motors, pneumatic geared motors or hydraulic geared motors as per customer’s requirement.
Stock Code:880221005A
Brochure:
GL Pump Catalog.pdf
Manual: GL Series Manual.pdf
| Brand : | Vitoli |
| Type : | Cast Iron Gear Pump |
| Model : | GL50 |
| Delivery Volume (L/min) : | 165 |
| Speed (rpm) : | 1450 |
| Maximum Pressure (Mpa) : | 0.5 ~ 1.0 |
| Power (kW) : | 3.7 ~ 7.5 |
| No of Poles : | 6 |
| Coupling : | JIS |
| Pump Shaft Diameter (mm) : | 22 |
| Connection Diameter (inch) : | 2 |
| Dimension (mm) : | 328 x 268 x 235 |
| Gross Weight : | 26 |
| A cast iron gear pump. |
| Safety bypass function protect pump. |
| Equipped with relief function and it is very safe. |
| Coupling for the pump is by using the ZDC coupling. |
| MUST NOT USE GASOLINE. |
| Refrain from using such liquid as solvent, acid or alkali because the pump is for oil. |
| Self priming up to 4m once it is wet. |
| Light and easy to be remove. |
| High resistance to abrasion and indentation due to high ductility. |
| Relatively fair resistance to corrosion |
| High heat resistance, strength and toughness. |
