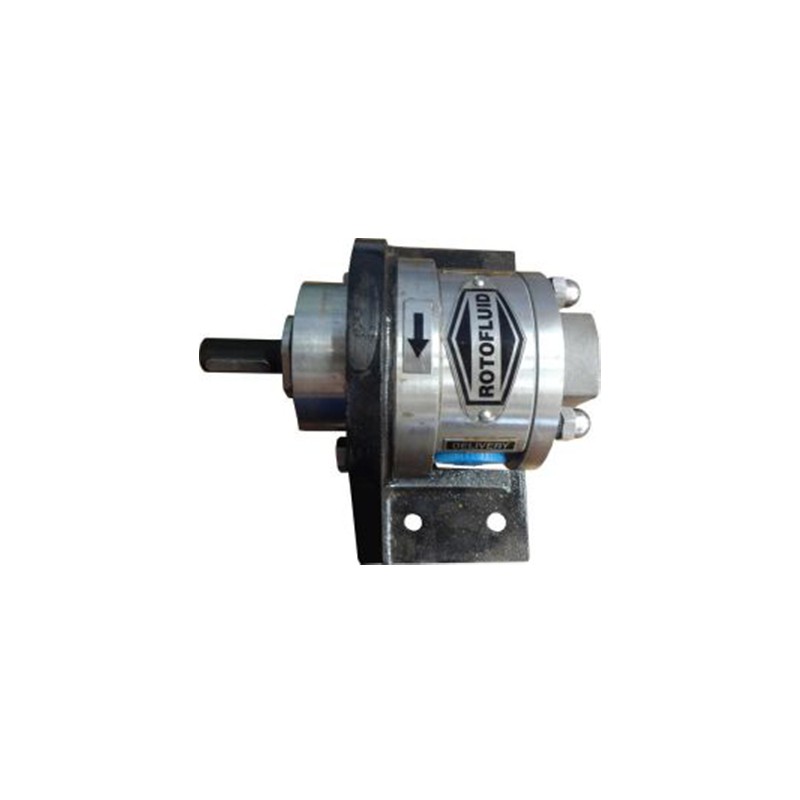

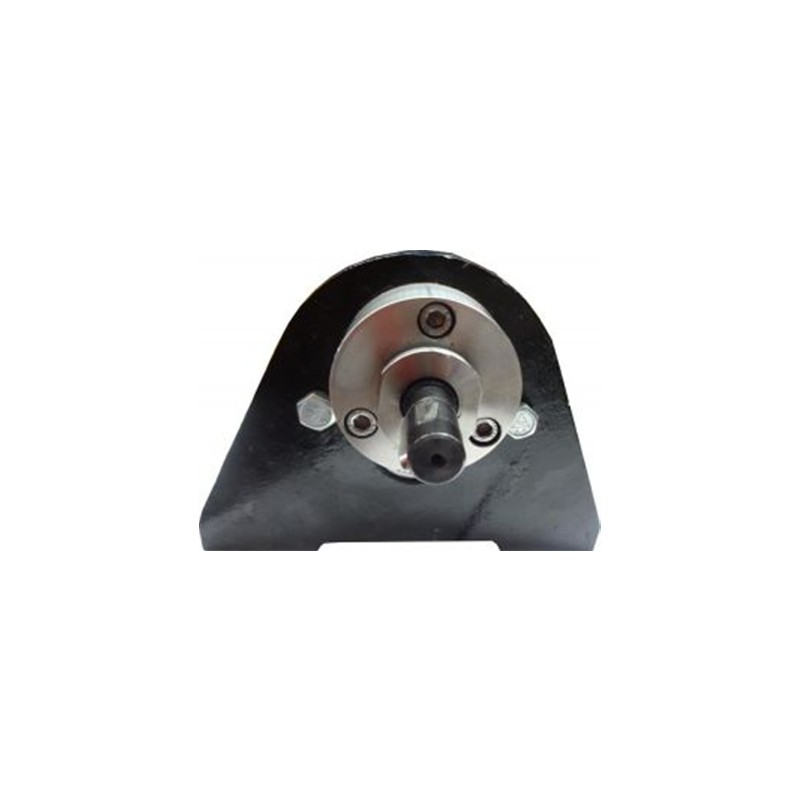

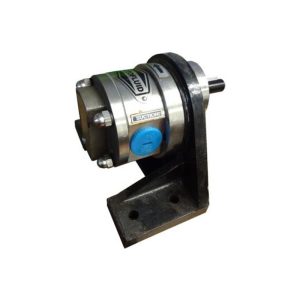

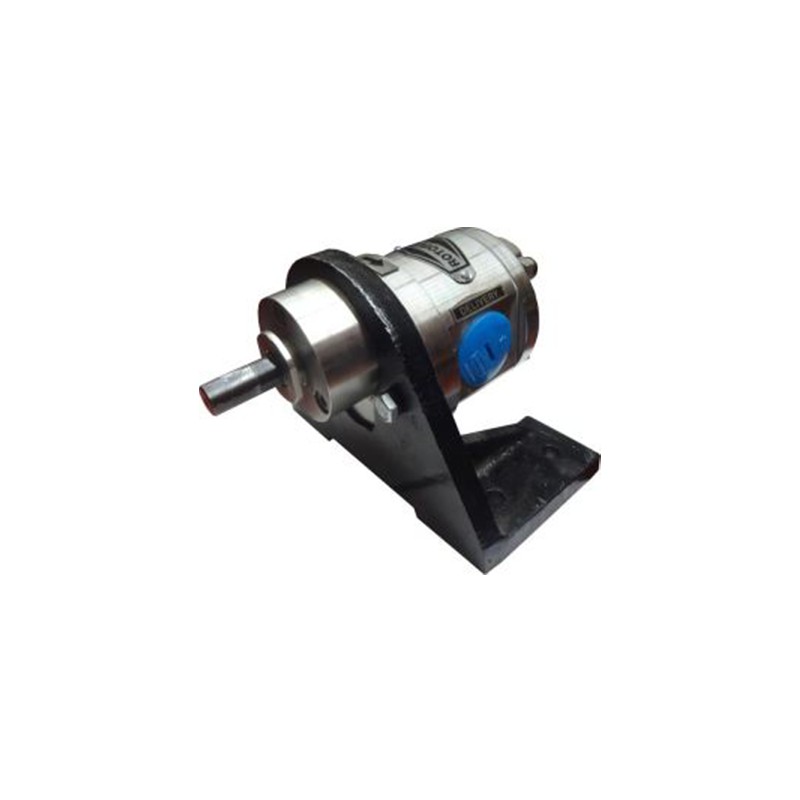

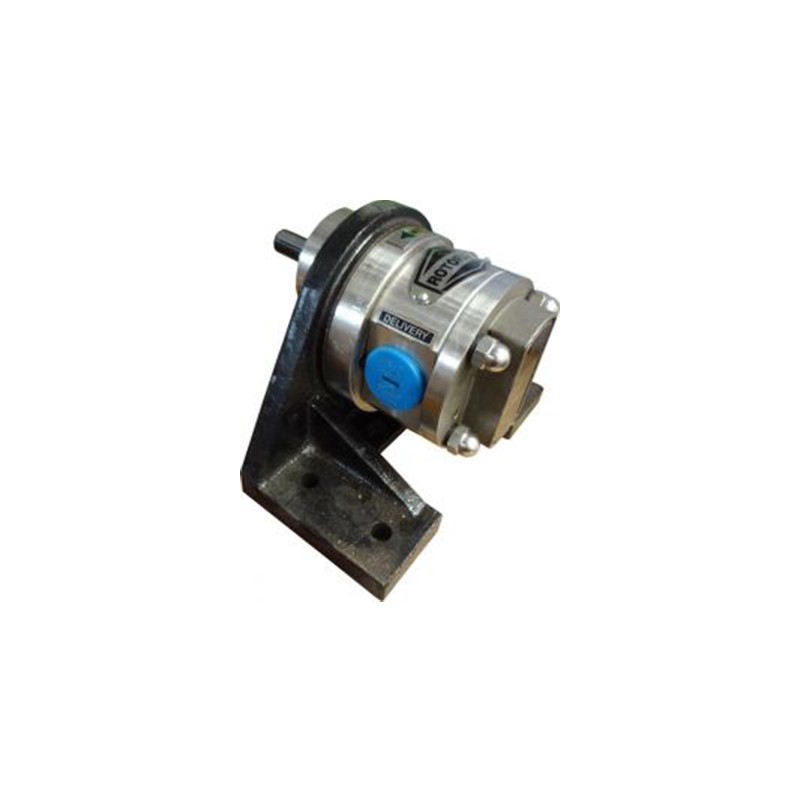

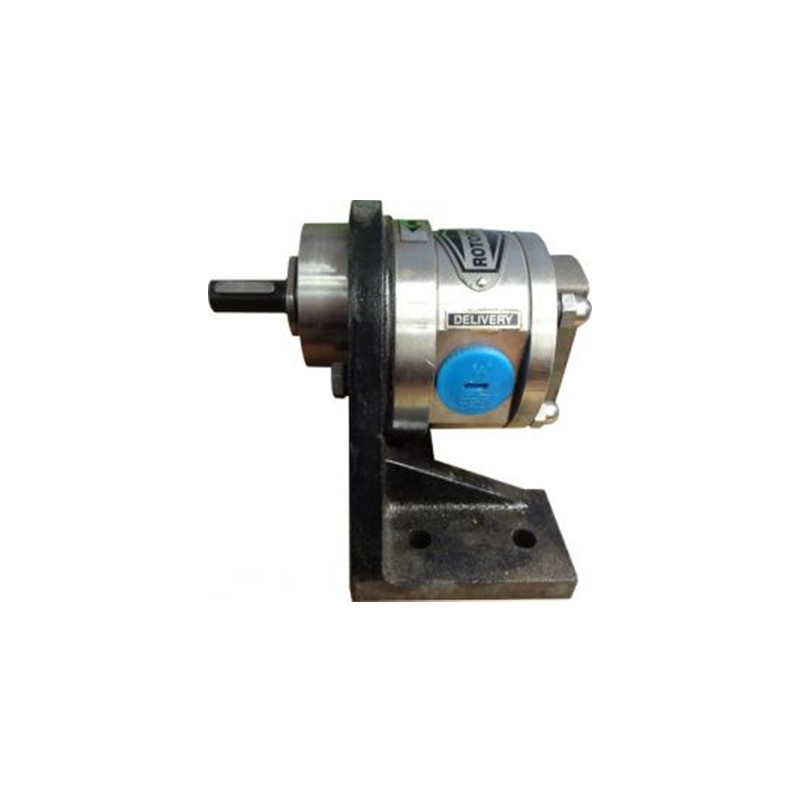

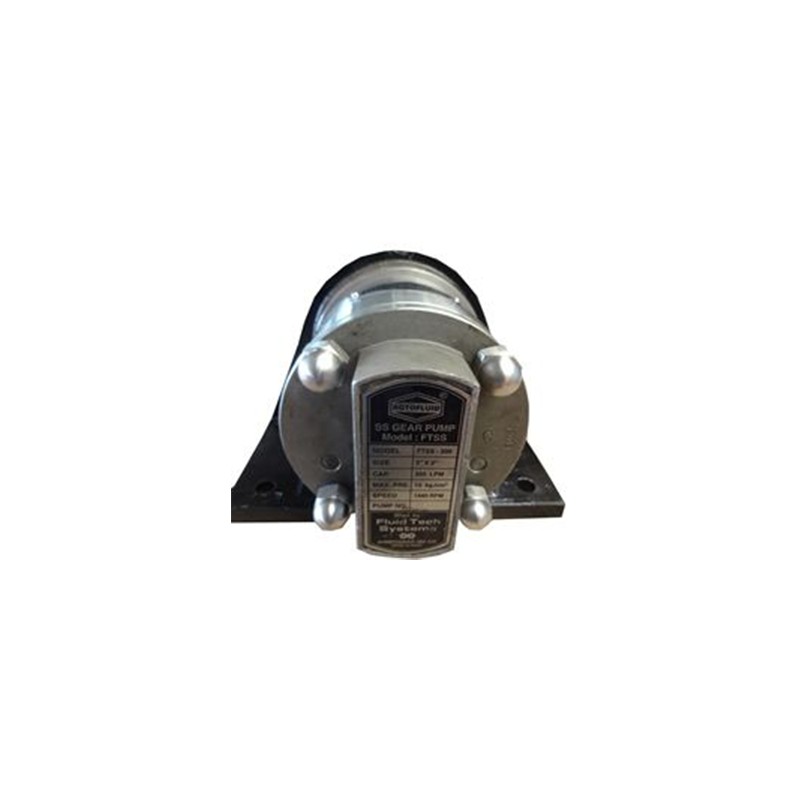

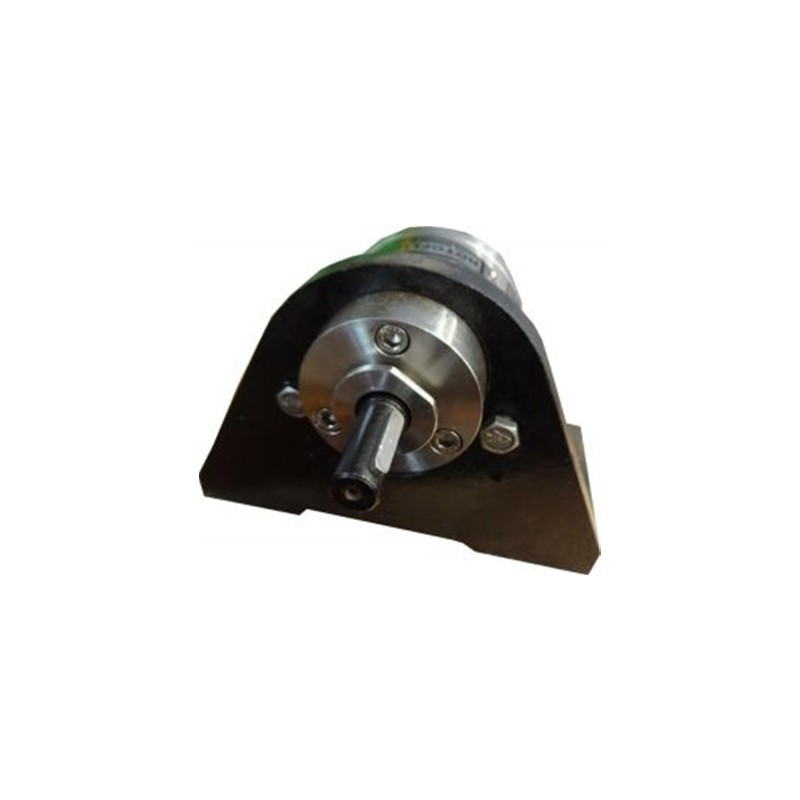

Rotofluid Gear Pump S/S FTSS-125 is self-priming bi-directional, positive displacement rotary pump in all stainless steel (SS-316) investment casting construction with nitrided gear/shaft and dry-teflon coated DU bush bearing requiring no lubrication. Rotofluid Gear Pump S/S FTSS -125 is a perfect solution for transfer of corrosive, hygienic and viscous liquid. Rotofluid Gear Pump S/S FTSS-125 comes in three piece construction are easily cleanable and maintainable. Rotofluid Gear Pump S/S FTSS-125 is designed to run at 1440 RPM up to viscosity of 500 CST. The back cover can simply be removed by four dom nut or the right angle mounting brackets facilitate foot mounting of the pump on base plate with electric motor of appropriate ratings. Rotofluid Gear Pump S/S FTSS-125 can be used for handling viscous food products like Ghee, Butter, Fruit Pulp, Vegetable sauce, starch and etc. Rotofluid Gear Pump S/S FTSS-125 also used in pharmaceutical industries for handling sugar solution, Glycerine, Glycol and etc. In chemical industries corrosive viscous chemicals can be easily handled with Rotofluid Gear Pump S/S FTSS-125 most effectively.
Stock Code:881209009
Brochure:
»» Click Here
| Model: | FTSS-125 |
| Type: | Rotary Gear Pump |
| Material: | Stainless Steel |
| Suction: | 1-1/4 inch |
| Delivery: | 1-1/4 inch |
| Speed: | 1440 rpm |
| Capacity: | 100 LPM |
| Capacity: | 26.4 US/GPM |
| Capacity: | 6.0 m³ / hour |
| Power Req.-Viscosity of 200 CST: | 0.65 |
| Power Req.-Viscosity of 500 CST: | 0.85 |
| Power Req.-Viscosity of 750 CST: | 1.25 |
| Bush Bearing: | Teflon coated DU |
| R.H & L.H Gear: | AISI-S.S.316 |
| Rotor & Stator Shaft: | AISI-S.S.316 |
| Mounting Bracket: | C.I.Gr.-20 IS 210 |
| Weight: | 7 Kg |
| Dimension: | (L)200 x (W)240 x (H)180 mm |
| Made In India |
| Self-priming bi-directional |
| Advanced technology for pumping viscous liquid |
| Made by stainless steel 316 |
| Easy to clean and maintain |
| Compact and efficient pump |
| Lightweight and small in size |
| Easy to remove back cover |
| Dry-teflon coated Du bush bearing requiring no lubrication |
| Sturdy construction and nice appearance |
