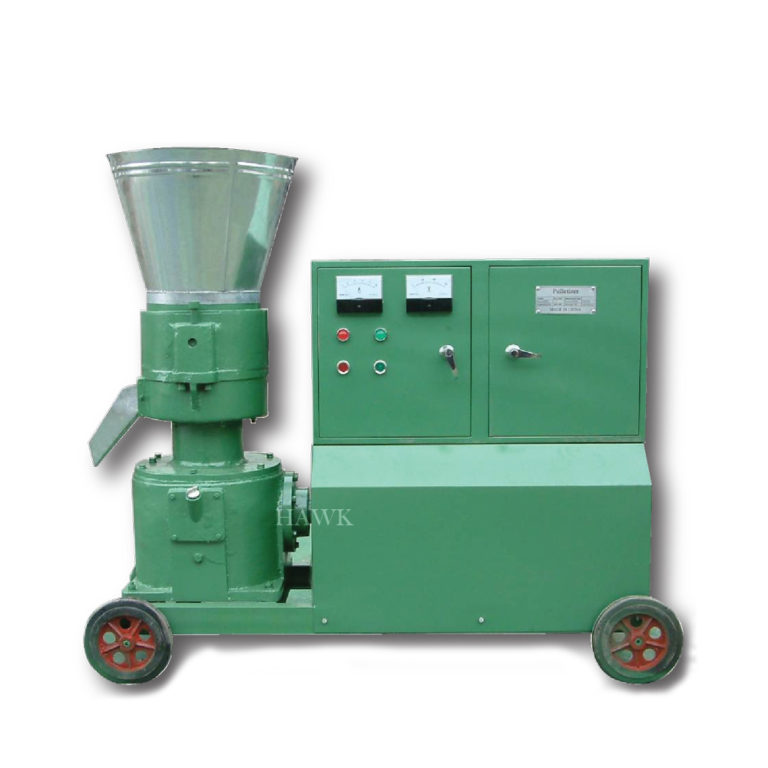

Hawk Pellet Mill PM300B use the motor or diesel engine as power. The machines drive the spindle and die through the gear driving. The raw material is forced out of die hole by the squeezing action of the die and pressing roll. Then the high quality pellets are produced. The length of the pellets can be controlled by adjusting the position of the tool bit. A wide range of raw material: all kinds of wood waste, rice husk, palm fiber, corn stalks, cotton stalks, wheat straw, peanut shells, corn cobs, solid waste, edible fungus residue, leaves, furfural residue, herbal residue, sawdust and other crops and bamboo particle.
Stock Code: 881402012
Brochure:
»» Click Here
| Motor: | Teco Motor |
| Capacity For Wood: | 280 – 320 Kg/hour |
| Capacity For Feetstuff: | 700 – 800 Kg/hour |
| Power: | 22.0 kW ( 3 PH) |
| Die Of Mould: | 300 mm |
| Size Of The Pellet: | 6mm , 8mm |
| Voltage: | 380V/240V |
| Moisture: | 10 – 15% |
| Output: | 0.04 – 3t/h |
| Output size: | 2.5 – 12 mm |
| Net Weight: | 410 Kg |
| Gross Weight: | 470 Kg |
| Dimension: | 1270 x 520 x 1070 mm |
| Simple structure, easy to clean and maintain |
| It can process the oil cake and other mixed waste material to granule at one time. |
| Low failure rate and easy operation |
| Low energy consumption |
| Raw material can be the mixture of 2 or more than 2 kinds different materials, they must be evenly mixed |
| No adhesive or chemical need in the processing |
| Simple structure with low energy, wide applicability, small footprint and low noise |
| High-quality |
| Be able to change new die and rollers faster to save time to produce pellets |
| Visibility to viewing the material during pelleting is the best way to fix problems |
| Warranty 6 months |
