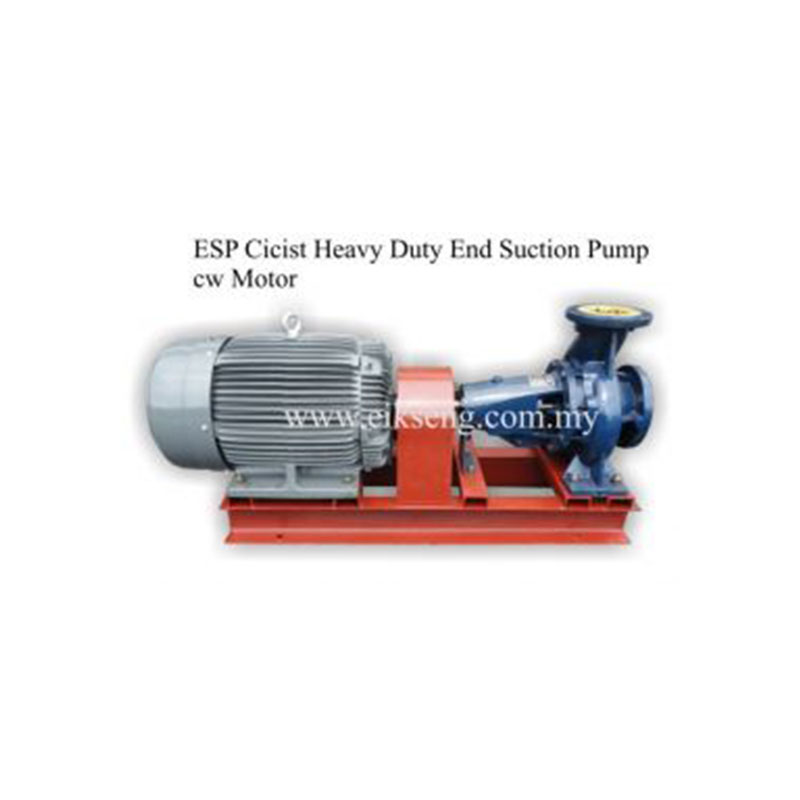

ESP Cicist Heavy Duty End Suction Pump 65/26 is a back pull-out centrifugal pump with mechanical seal (MS) that will prevent leaking that prevent liquid under pressure from leaking out of the pump or from drawing air into the pump when under vacuum condition, frame mounted end suction pump shaft and bearings that are independent to the motor. In order to transfer energy from the motor to the pump, a coupling of flange between them is required. This pump has high efficiency volute with self-venting centre line discharge. The main features of this design are increased efficiency and lower life cycle costs. The footed bearing frame provides ease of maintenance while the impellers are trimmed and balanced that offering reduced noise, vibration, harshness, prolonged seal, bearing life. The spacer can be remove to allow the rotating element to be service or replacement easily without realigning either the pump or motor. ESP Cicist Heavy Duty End Suction Pump 65/26 mainly used in water pressure boosting, air conditioning, refrigeration, irrigation, fire protection, industrial used and etc.
Back pull-out centrifugal pumps with gland mechanical seal
Model :
65/26
Max. Capacity (m³) :
up to 600
Max Head (m) :
up to 150
Max Speed (rpm) :
up to 3600
Temperature range (°C) :
-10 – 150
Max working pressure (bar) :
16 on most models
Flange :
To ISO 2084 Pn16 (DIN 2533 PN 16)
Direction of rotation :
Clockwise view from drive end
Shaft size (mm) :
32
Port Size (inch) :
3 x 2½
Dimension (mm) :
570(L) x 450(H) x 360(W)
Weight (kg) :
81
1450 rpm
Motor Power (HP) :
10
Head (ft) :
68
Flow (gpm) :
343
2900 rpm
Motor Power (HP) :
75
Head (ft) :
272
Flow (gpm) :
643
Features
Part
Material
Casing
cast iron / stainless steel
Bearing housing
cast iron
Impeller
cast iron / bronze / stainless steel
Wear ring
cast iron / bronze / stainless steel
Shaft
high tensile steel / stainless steel
Shaft sleeve
Stainless steel
High efficiency volute casing with self-venting centre line discharge with double shrouded hydraulic mechanical balanced impeller.
replaceable wear rings fitted to all volutes, back cover of large pumps and replaceable shaft sleeve which enables any scoring under mechanical seal be rectified by repairing the sleeve not the whole shaft.
A removable support foot for greater rigidity, bearing are pre-packed sealed for life with bearing housing to ensure interchangeability or parts and minimize stock inventory.
Pump is thoroughly cleaned of scale and other foreign material and painted with high quality enamel paint.
Application in air conditioning, refrigeration, fire protection, pressure boosting, water treatment, sprinkle and etc.
