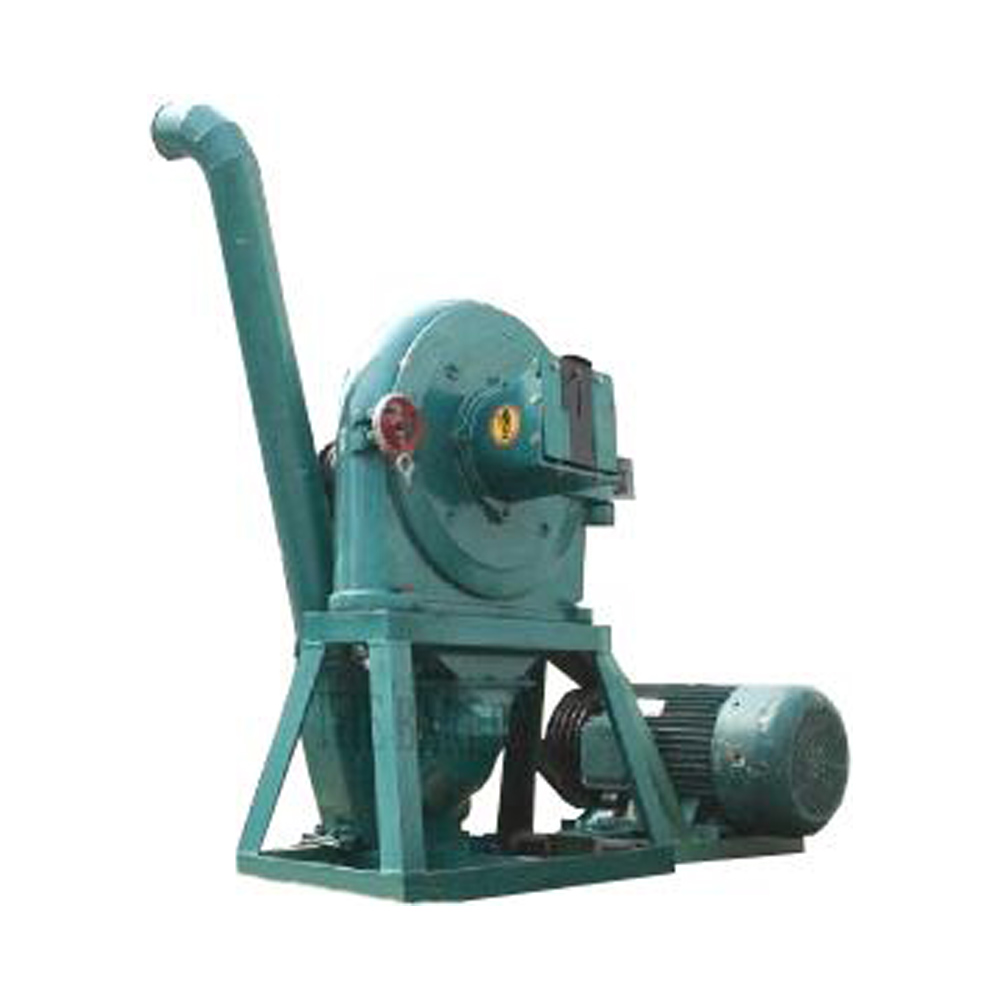

Baker Disk Mill 9FC500

The Baker Disk Mill 9FC500 operated together with 30HP / 4P / 3PH motor are used for crushing grains such as corn, soy bean. Sorghum, dried sweet potato slices, dried straw and grass, coal powder, fire-resistant powder, wheat, flavours, herb and other chemical products.The Baker Disk Mill 9FC500 has the advantage of low electric consumption, reliability, convenient assemble and stable operation.The Baker Disk Mill 9FC500 is widely used in the chemical, paper-making, medical industry, pharmaceutical manufacture, monosodium glutamate factory, fodder factory, soy bean cake factory and metal calcium works.

Stock Code:880313005

Brochure: »» Click Here

Category:

Specification

Model: 9FC500
Power: 22 kW (30 HP motor)
Phase: 3 PH
Pole: 4P
Appearance: Vertical
Voltage: 415V
Frequency: 50Hz
Outer Rotator Diameter: 500 mm
Rotating Speed: 3300 r/min
Long Oblate Gear T: 5 pcs
Shirt Oblate Gear: 5 pcs
Knuckle Gear: 10 pcs
Spindle Speed: 3200 rpm
Sieve Size: Ø2 – Ø6 mm
Productivity: * Corn: 3600 – 4800 Kg / hour
* Dried Sweet Potato SLice: 4500 – 6000 Kg / hour
* Dried Straw and Grass: 750 – 960 Kg / hour
* Soya bean: 1800 – 3000 Kg / hour
* Coal Powder: 4500 – 6600 Kg / hour
* Fire-Resistant Powder: 3600 – 6000 Kg / hour
Weight: 460 Kg
Dimension: (L) 1800 x (W) 1200 x (H) 1450 mm

Features

Simple structure and small volume
Lightweight and easy to install
Easy to use and maintain
Multiple power choice
Suitable for rural area to choose available power
Modern design
High quality and energy saving
Increase grinding capacity and prolong useful life
Can be used to crush fresh fruit, sweet potato and soaked soy beans which have high moisture content
Warranty 1 year
