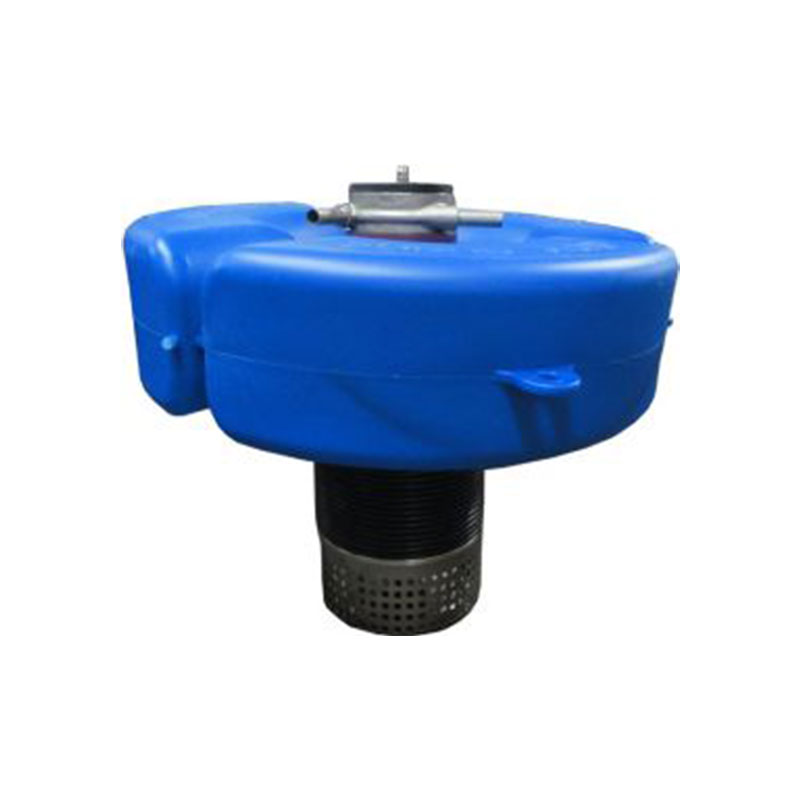

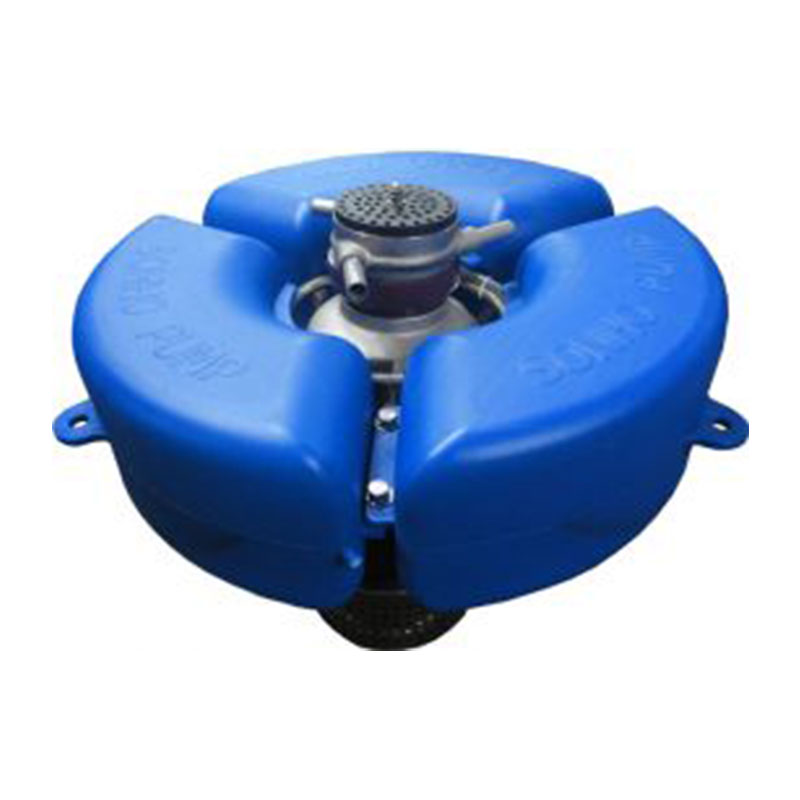

Tideway Aerator KP409 is a new patent rotary sprinkling with floater produces fine water splash to higher and more extensive area. It is designed with multifunction and can be individually used as dewatering pump for landscaping. Tideway Aerator KP409 can cover up to 5mm diameter and dissolve pure oxygen efficiently. Besides, it is able to create capacity up to 1.0m³/min for excellent water circulation within water surface and bottom. Moreover, it comes with basic accessories such as 3 piece coupled floater, rotary sprinkling plate, and submersible pump with 20cm cable. Tideway Aerator KP409 is made in Taiwan, and adopting dual SIC mechanical seals for high wear-resistance and durability.
Stock Code:880317025
Brochure:
Tideway Aerator With Floater KP409.pdf
Manual: Aerator Pump KP409 Manual.pdf

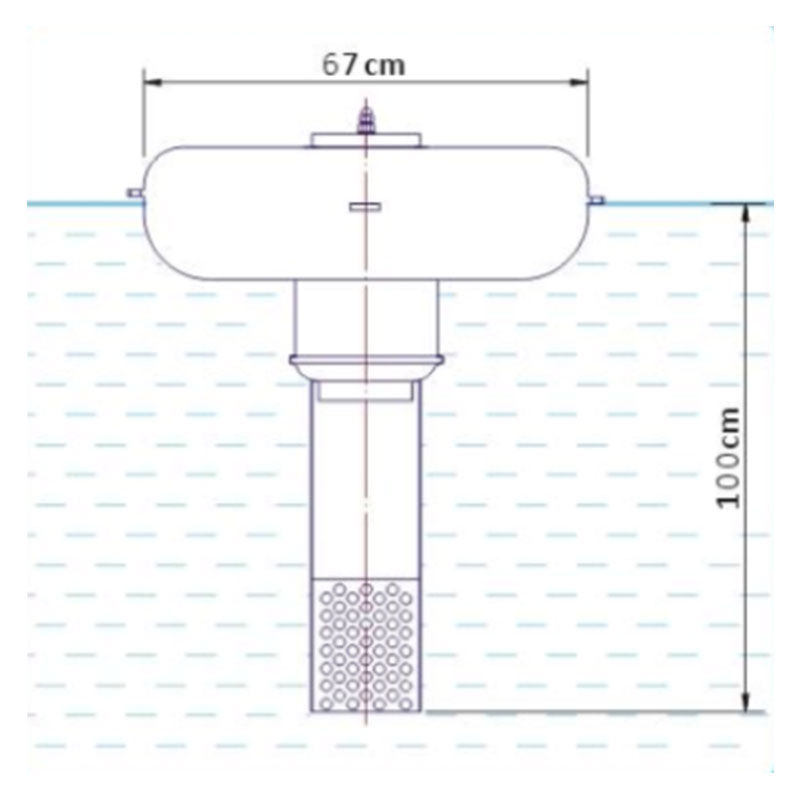

| Brand : | Tideway | Type | Aerator with floater | Model | KP409 | Motor Frame Material | Stainless Steel | Parts Material | Cast iron parts are painted with EPOXY paint | Power (kW) | 0.75 | Horse Power (hp) | 1 | Flow rate (m³/ min) | 1.0 | Voltage (V) | 415 | Frequency (Hz) | 50 | Phase (PH) | 3 | Complete installation dimension (cm) | 67(L) x 67(W) x 69(H) | Weight (kg) | 30 |
| Made in Taiwan |

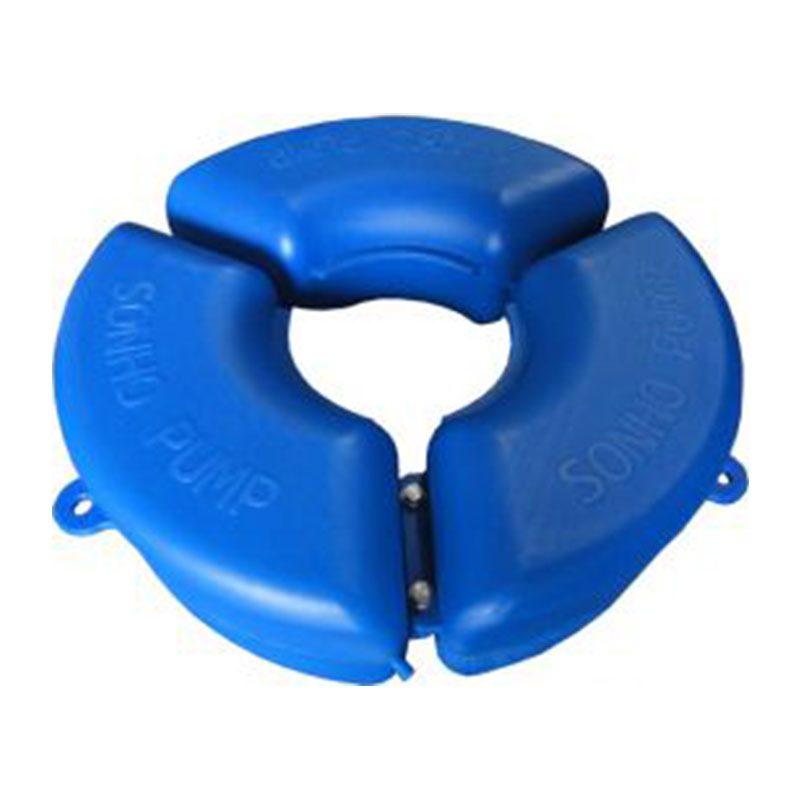

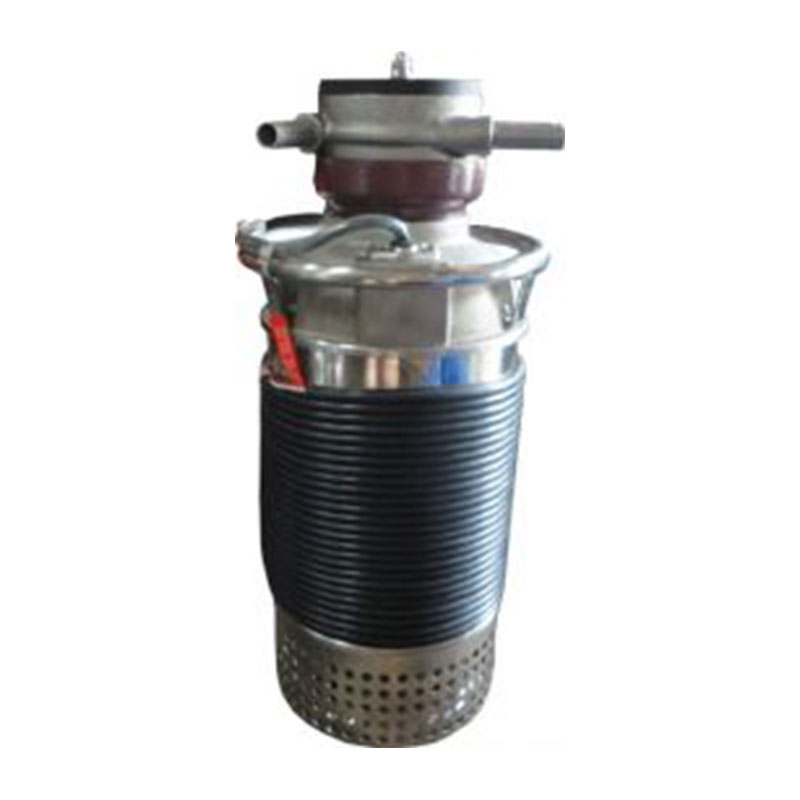

| Standard accessories provided: 3 piece of coupled floater, rotary sprinkling plate, and submersible pump with 20cm cable |
| Low power consumption |
| Save time and space for installation |
| Lightweight and portable design |
| Flow rate produced up to 1.0m³/min for excellent water circulation within water surface and bottom |
| The depth of water inlet is adjustable |

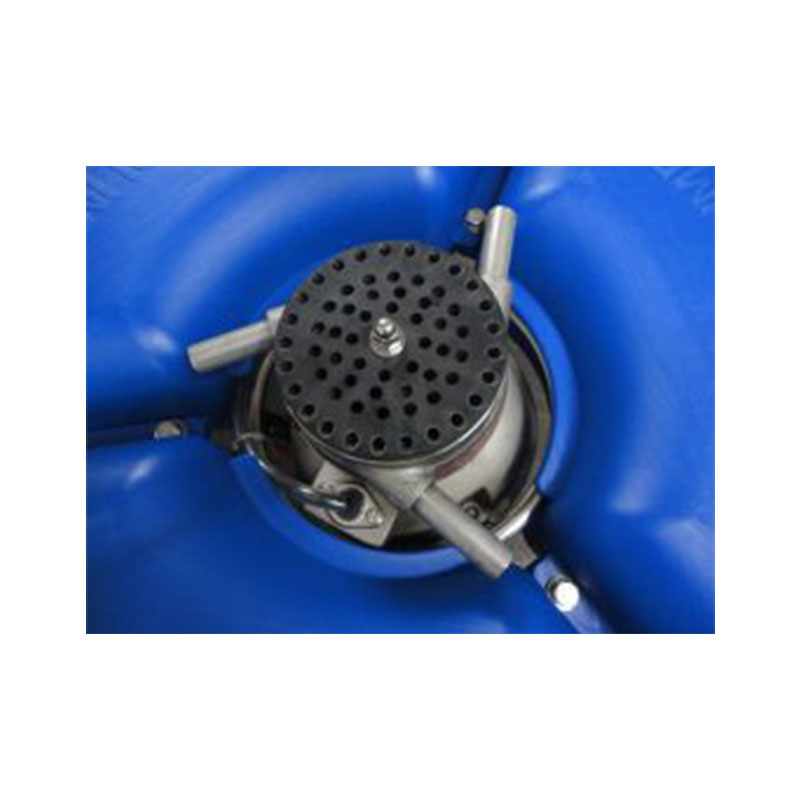

| New patent rotary sprinkling produces fine water splashing to higher and wider area that cover up to 5m diameter |
| Effectively dissolving pure oxygen |
| High efficient dry motor is use and equipped with overload protector |
| Axial flow design produces high flow rate |
| Using Dual SIC (Silicone Carbide) mechanical seals for high wear-resistance and durability |
| Motor frame is made of stainless steel |
| Cast iron parts are painted with epoxy paint and baked in 180° to prevent rusting |
| Easy installation with no tool kits are required |
| Simple maintenance with low cost consumption |
| Designed with multifunction |
| Can be individually used as dewatering pump for landscaping |
